Piusi K24 Digital Fuel Flow Meter (Plastic) | 5–120 LPM | 1″ BSP
Digital fuel flow meter for diesel & water — 5–120 LPM, 1″ BSP, battery powered.
Free Delivery
FREE UK delivery.
Delivery aim 2–3 working days.

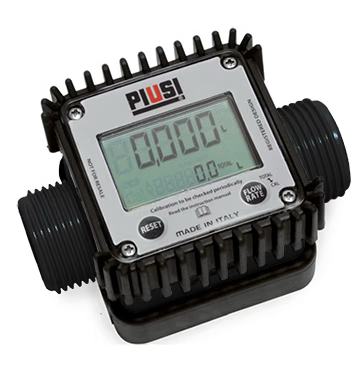

Piusi K24 Digital Fuel Flow Meter (Plastic)
The Piusi K24 fuel flow meter is a compact digital turbine meter designed to accurately measure the quantity of diesel or water dispensed. It can be installed inline or at the nozzle end for easy reading, and the display can be rotated to suit different installation orientations.
Key features
- Flow rate: 5–120 LPM
- Connections: 1″ M BSP inlet/outlet (with socket)
- Accuracy: ±1% after calibration
- Display: LCD with flow rate indication
- Totalisers: 5-digit partial + 6-digit total
- Power: 2 × AAA batteries
- Working temperature: -10°C to +50°C
- Maximum pressure: 10 bar (145 psi)
- IP rating: IP65
- Suitable for: pump and gravity systems
- Fluids: diesel and water (see note for HVO)
Where it’s used
- Portable diesel transfer setups (agricultural / plant / site use)
- Gravity-fed or pumped dispensing where a lightweight meter is preferred
- General diesel or water flow measurement with a clear digital readout
Notes
- HVO/GTL: if using with HVO, the meter should be re-calibrated to suit the fluid’s specific gravity (SG).
- This listing is for the plastic K24. A more rugged aluminium version is available as an alternative.
Image may vary depending on product model.
| Brand | Piusi |
|---|---|
| Model | K24 |
| Product code | F00407330 |
| Meter type | Digital turbine |
| Max flow rate (LPM) | 120 |
| Flow range (LPM) | 5–120 |
| Connection | 1" M BSP inlet/outlet |
| Power | 2 × AAA batteries |
| Accuracy | ±1% (after calibration) |
| Max pressure (bar) | 10 |
| IP rating | IP65 |
| Operating temperature | -10°C to +50°C |
| Body material | Plastic |
| Fluids | Diesel, Water, HVO/GTL, Windscreen wash |
Overview
The Piusi K24 is a compact digital turbine flow meter for measuring dispensed volume on diesel or water transfer setups. It can be installed inline or at the nozzle end, and the display can be rotated to suit different mounting directions.
Key points
- Flow range: 5–120 LPM
- Connections: 1" BSP (male) inlet/outlet
- Battery powered: 2 × AAA
- Accuracy: ±1% after calibration
- Partial + total counters
Installation notes
- Install in the direction of flow and ensure all threaded joints are sealed correctly.
- Mount where the display can be read easily (inline or near the nozzle).
- For best accuracy, calibrate after installation and re-check periodically.
FAQs
Can I use it on gravity-fed tanks?
Yes. The K24 is suitable for gravity systems as well as pumped systems, provided the flow rate is within the working range.
Can the display be rotated?
Yes. The face can be rotated to suit different installation orientations.
Does it work with HVO?
It can be used with HVO, but it should be re-calibrated to suit the fluid’s specific gravity (diesel is typically higher).
What batteries does it use?
2 × AAA batteries.
What do the counters show?
A resettable partial counter for individual fills, plus a total counter for overall usage.
Note: Image may vary depending on product model.
