Piusi E80 Diesel Transfer Pump | 75 LPM 230V / 400V

Piusi E80 diesel transfer pump with 230V or 400V options.

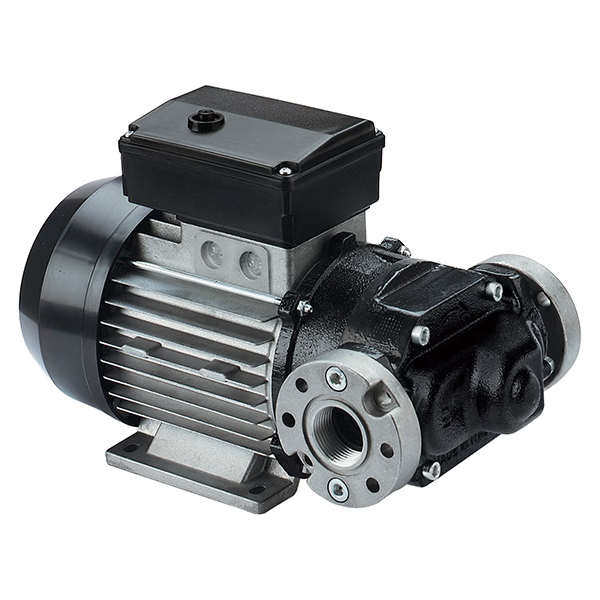

The Piusi E80 Diesel Transfer Pump is a robust self-priming rotary vane pump for diesel and compatible HVO/XTL fuel transfer applications. This variable product allows you to choose either the 230V or 400V version, depending on your site power supply and installation requirements.

The E80 is designed for reliable fuel transfer use where a compact, long-lasting AC pump is required. It features a sturdy cast iron body, integrated bypass valve, inlet filter and 1″ BSP flanged connections, making it suitable for diesel dispensing systems, fuel transfer kits and fixed pump installations.

Choose your voltage option

• 305000 – 230V: single-phase E80 diesel transfer pump
• 307000 – 400V: three-phase E80 diesel transfer pump

Supplied complete with:

• Piusi E80 diesel transfer pump in your selected voltage
• Flanged 1″ BSP connections
• Instruction manual

Piusi E80 pump key features

• Self-priming rotary vane pump for diesel and HVO/XTL transfer
• Choice of 230V or 400V models
• Flow rate: approx. 70–75 litres per minute, depending on installation conditions
• 1″ BSP inlet and outlet connections
• Integrated bypass valve
• Built-in inlet filter
• Cast iron body with sintered steel rotor, acetal resin vanes and Viton seal
• IP55 motor protection
• Designed for continuous duty under suitable operating conditions

This Piusi E80 transfer pump is a strong choice for diesel storage tanks, workshop fuel transfer points, agricultural fuel systems and commercial diesel dispensing setups. The 230V version is suitable for standard single-phase installations, while the 400V version is intended for three-phase site power supplies.

Before ordering, check your required voltage, pipework size, power supply and installation layout. The pump should be installed by a competent person and used only with compatible fuels. It is not suitable for petrol, water, food liquids, corrosive chemicals or solvents.

Downloads

Piusi E80 Instruction Manual (PDF)

Piusi E80 Datasheet (PDF)

Why Choose Piusi Quality? (PDF)
