Float Gauge | Afriso 4ft Oil Tank Level Gauge 1½” BSP

Float gauge for oil, fuel and water tank level checks.

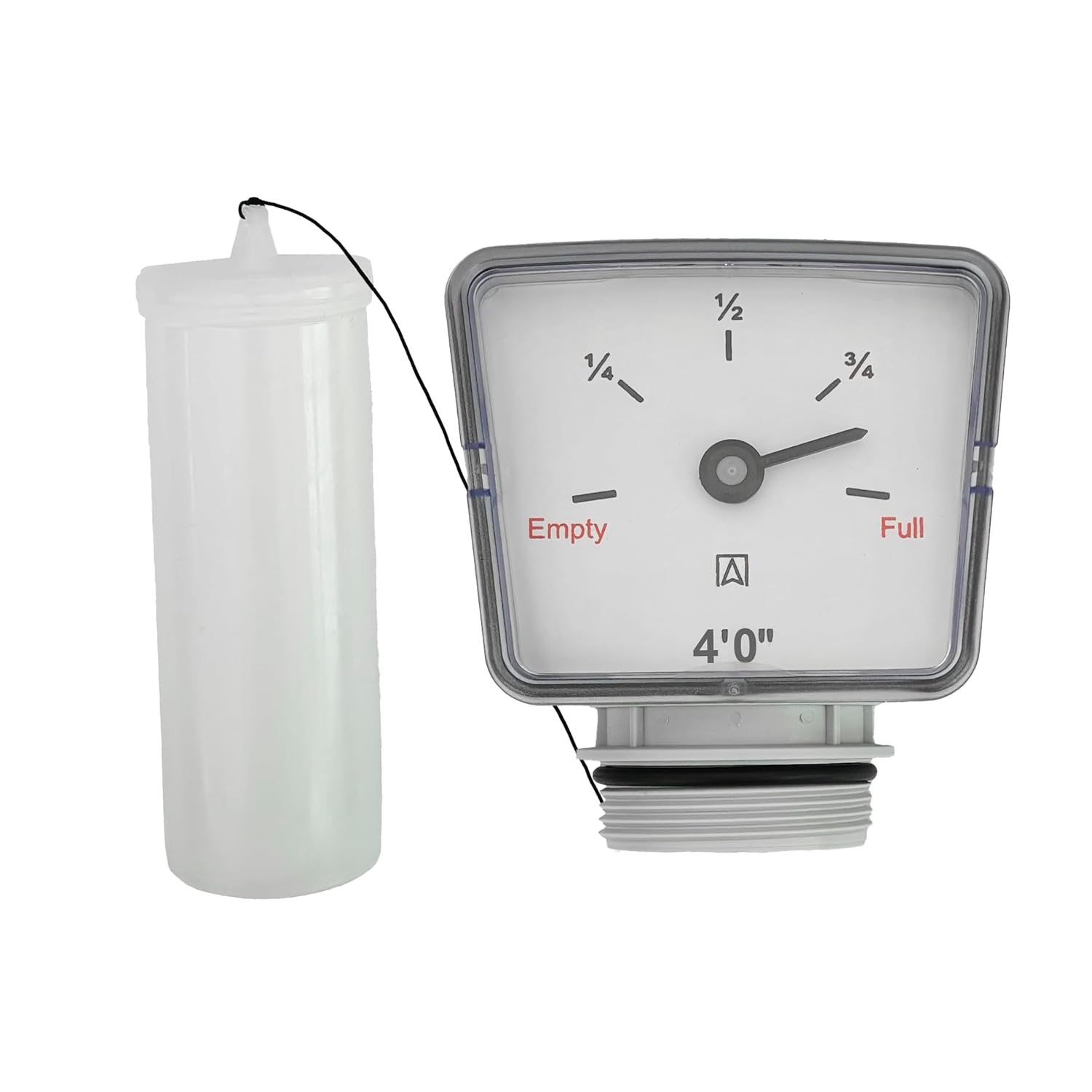

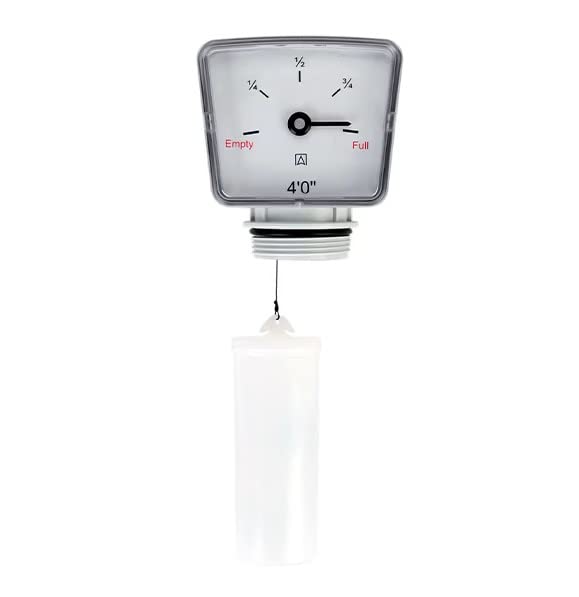

The Afriso 4ft float gauge is a simple mechanical tank level indicator for compatible oil, fuel and water storage tanks. It uses a float and dial to give a quick visual indication of the liquid level inside the tank, with no batteries, wiring or power supply required.

This oil tank float gauge is designed for tanks up to 4ft / 1.2m deep and mounts from the top of the tank using a 1½” BSP male thread. It is a practical choice for customers who want a straightforward mechanical tank level gauge instead of an electronic monitor.

Supplied complete with:

• Afriso 4ft / 1.2m mechanical float gauge

Float gauge key features

• Mechanical float gauge for simple tank level checks
• Suitable for tanks up to 4ft / 1.2m deep

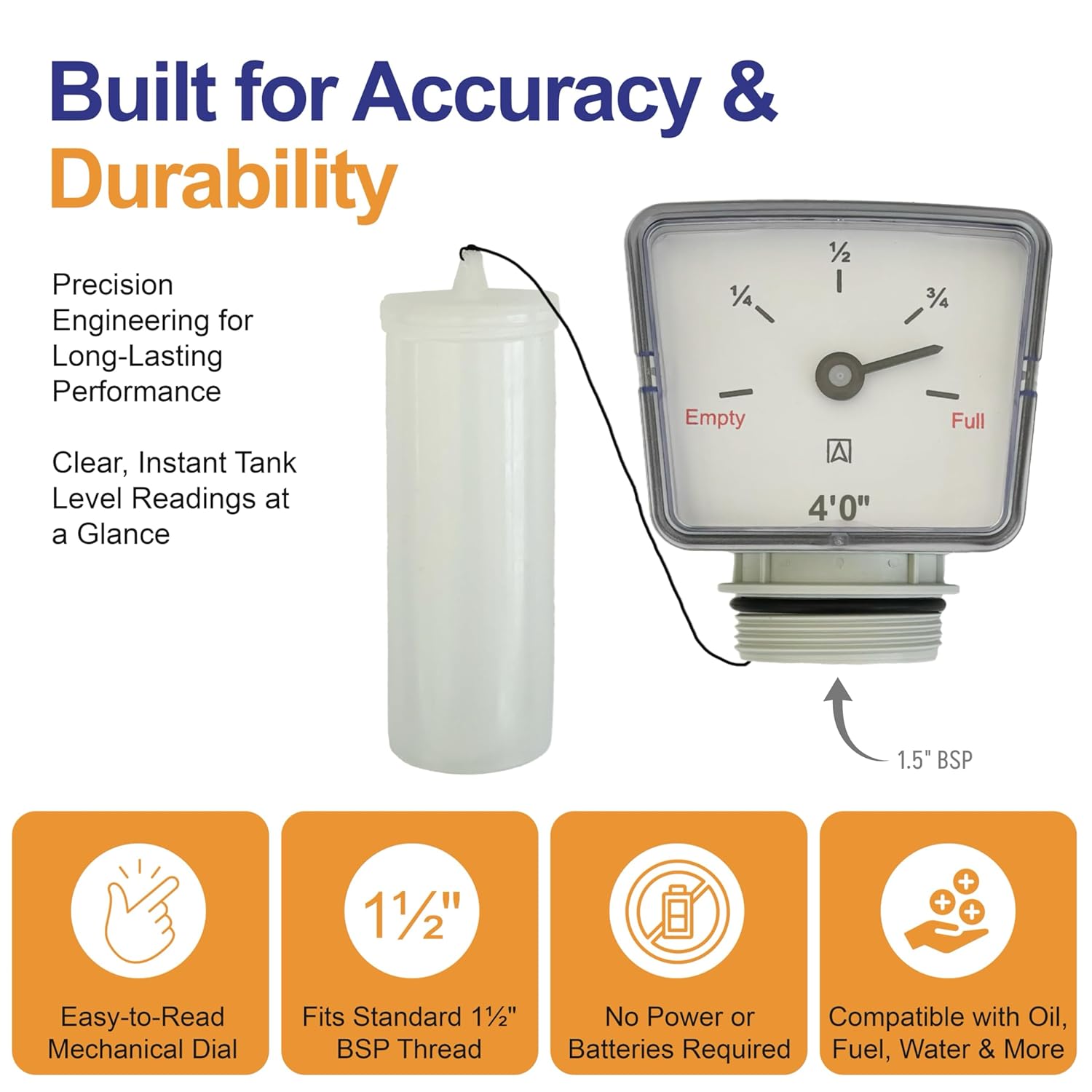

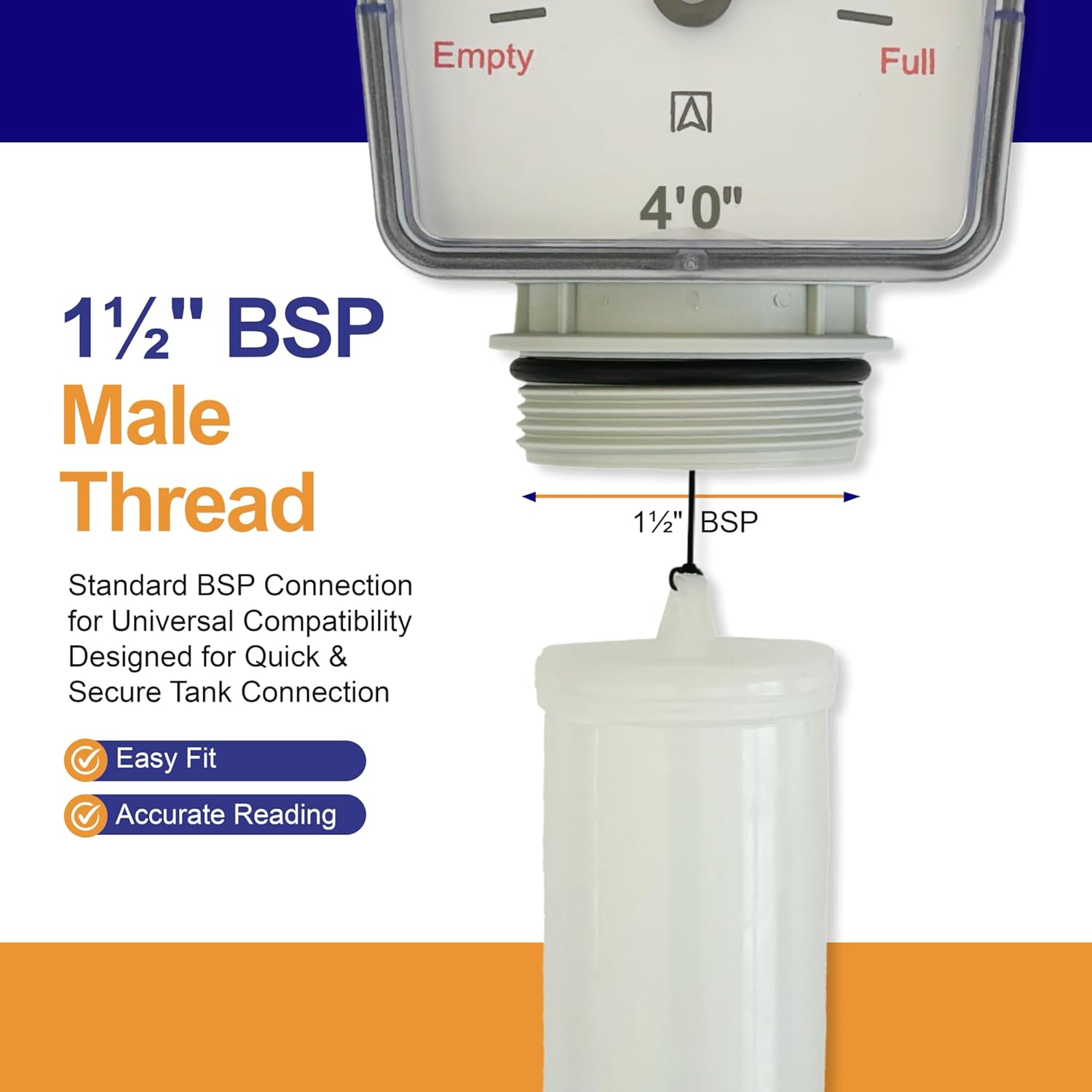

• 1½” BSP male top-mount connection
• Fits compatible tanks with a 1½” BSP female tank opening
• No batteries, wiring or power supply required
• Clear dial display for approximate tank level indication
• Commonly used on heating oil, diesel, kerosene and water tanks

This tank level float indicator is ideal for domestic and light commercial tanks where a quick visual level reading is needed. It can be used as a replacement gauge or fitted to a compatible tank with the correct threaded opening.

Before ordering, check that your tank has a suitable 1½” BSP female threaded port, that the tank depth does not exceed 4ft / 1.2m, and that there is enough internal clearance for the float to move freely.
