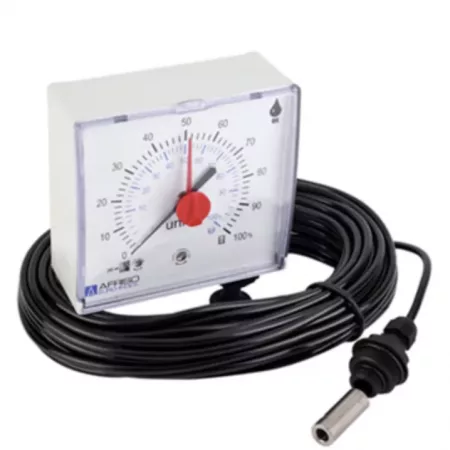

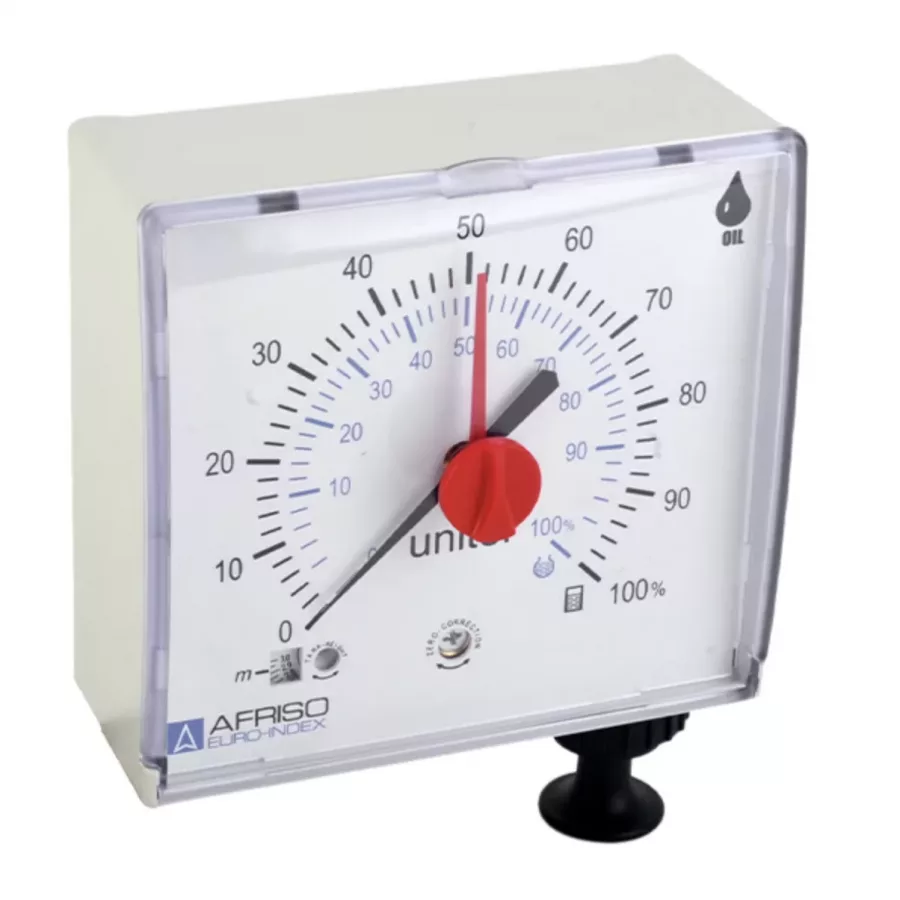

Unitel Fuel Tank Level Gauge Hydrostatic (Percentage)

The Unitel Hydrostatic Fuel Tank Gauge from Afriso Euroindex is a pneumatic tank level indicator designed for use primarily on fuel oil and diesel tanks. It has a spring loaded plunger that you pull and release until the needle settles on the contents left within the storage tank, which is then displayed clearly as a percentage on its large mechanical face. This Unitel gauge fuel tank level gauge is suitable for horizontal, vertical, cylindrical and rectangular tanks, with heights between 1200mm and 3000mm for diesel, making the Unitel a highly popular and versatile tank level indicator.

The Unitel fuel tank gauge also benefits from a handy adjustable second needle for setting a level parameter, which you can then use to indicate the level at which you need to reorder fuel. Supplied in an impact resistant casing, the Euroindex contents gauge can be easily wall or tank mounted.

Please note: If being used with HVO, the gauge should be re-calibrated as per the matrix in the instruction manual based on it’s SG of 0.78 (diesel is 0.84).

Features of the Unitel Fuel Tank Level Gauge:
Pneumatic fuel tank contents gauge
Percentage reading
Spring loaded plunger to pull/release
1” and ½” M BSP dual threaded
Supplied with 20metres of PVC capillary
For diesel tanks 1200-3000mm height
Accuracy +/-3% at full scale
Gauge face 145mm x 135mm
For rectangular & cylindrical tanks
Suitable for diesel, kerosene, biodiesel up to B100, water and urea
