Atlantis 1250 Litre Low Profile Steel Bunded Oil Tank | Imperium® | TAN.HOI-1315
Volume: 1250ltr
Weight: 264.00kg
Dimensions: L:2000mm W:1250mm H:600mm
Footprint: L:2000mm x W:1250mm
Free Delivery
FREE TAIL LIFT Delivery (For most tanks under 2500 litres) – Lowers tank to ground level to assist in off-loading, United Kingdom mainland delivery.
Delivery time approximately 2-3 weeks
Atlantis 1250 litre low profile steel bunded oil tank with Imperium®.
This Atlantis 1250 litre low profile steel bunded oil tank is built with Imperium® Technology and is designed for safe, secure heating oil storage where a lower tank height is preferred. With an overall height of just 600mm, this tank is a practical option where visual impact, screening or siting height is a key consideration.
Its double-skinned bunded construction provides secondary containment, while the wider low profile design helps keep the tank lower to the ground compared with taller upright tanks. The Imperium® design also focuses on durability, practical installation, standardised fittings and long-term reliability.

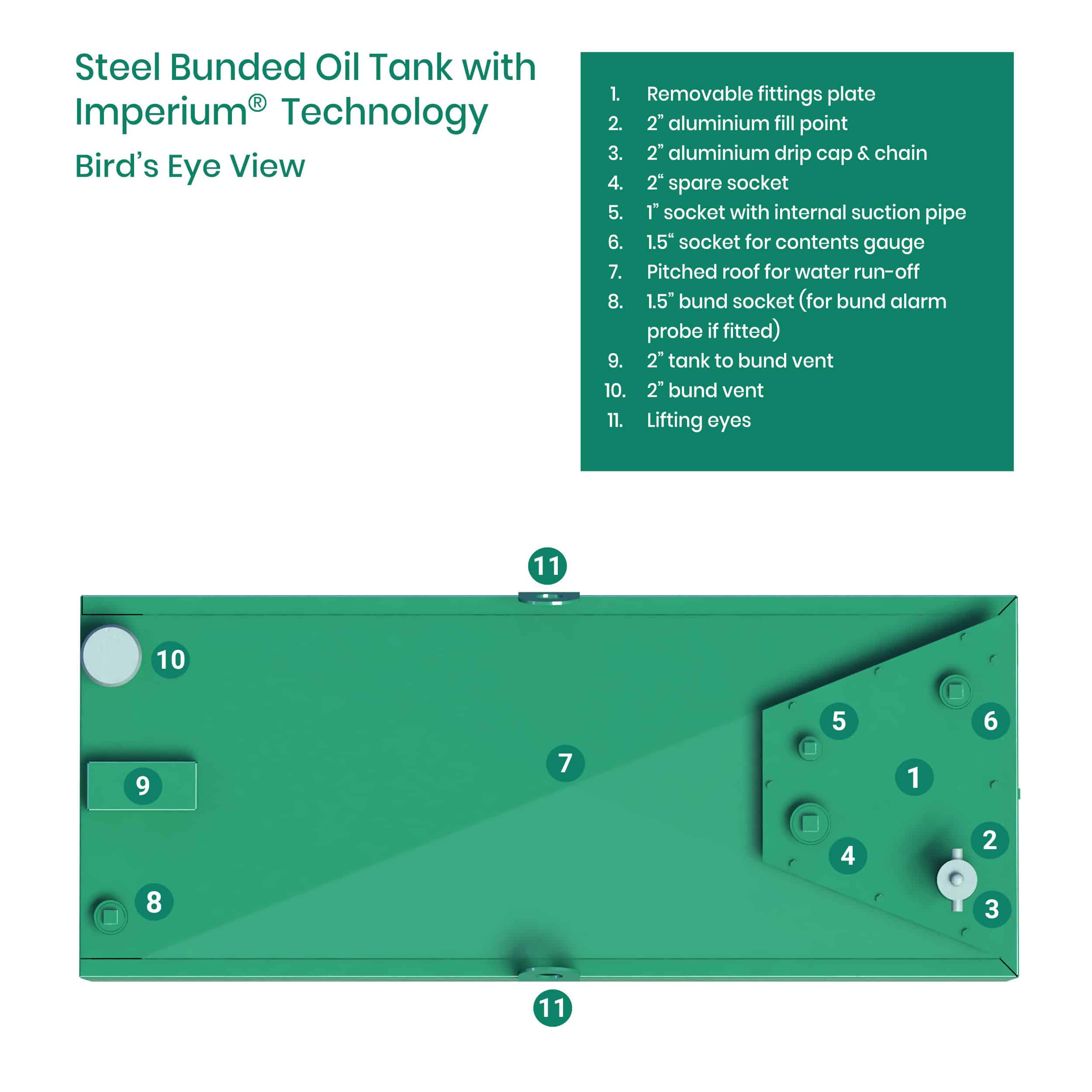

Atlantis 1250 litre low profile oil tank supplied complete with:
- 2″ fill point with aluminium drip cap
- Gauge option: No Gauge Required, Clock Face Gauge, Apollo Standard Gauge, Apollo Visual Gauge or Magnus HAWKi Monitor
- 1″ bottom outlet with FREE Ultra Compact Valve & Filter Upgrade (or standard filter valve setup if preferred)
- 2″ overfill prevention option available

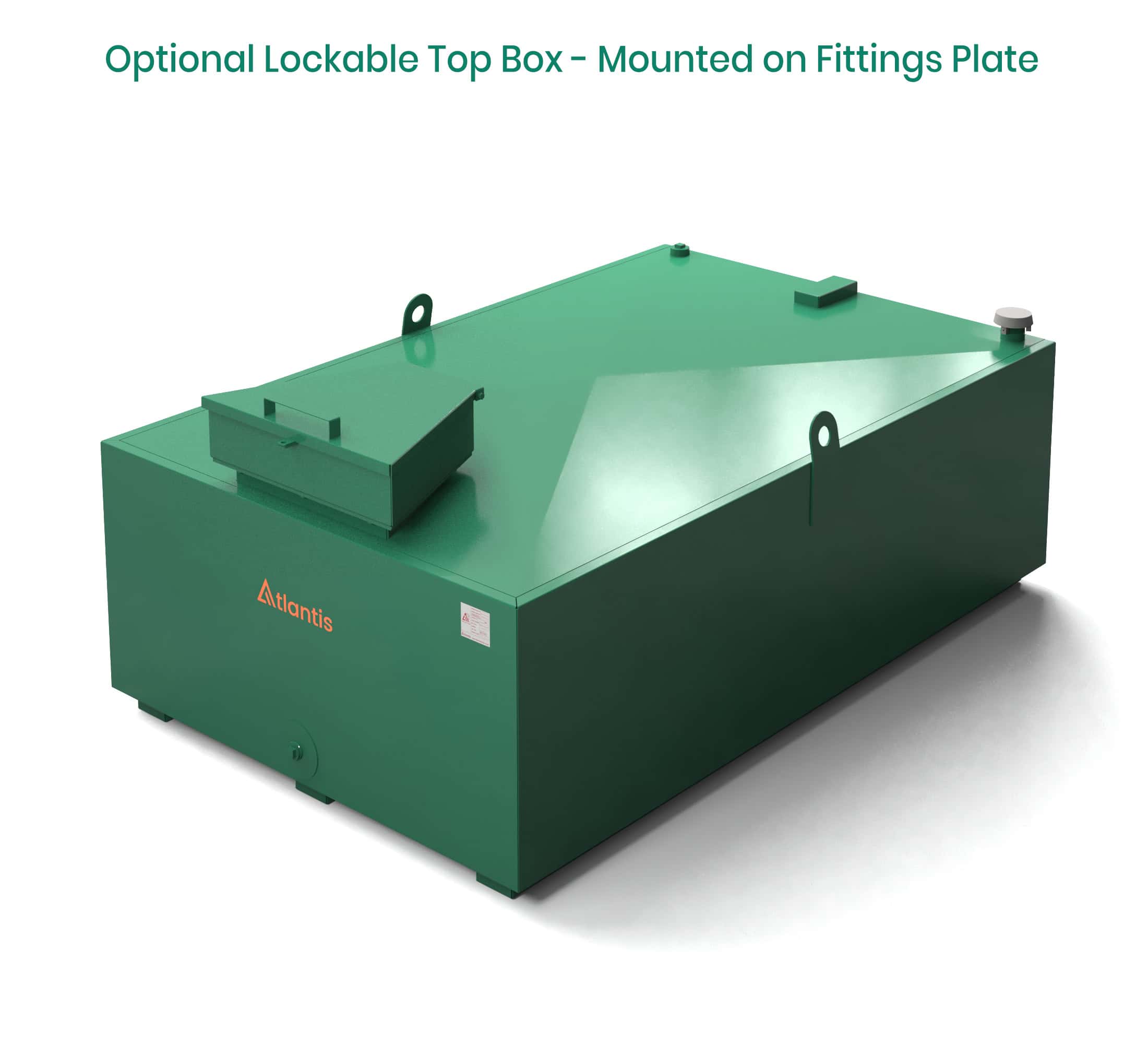

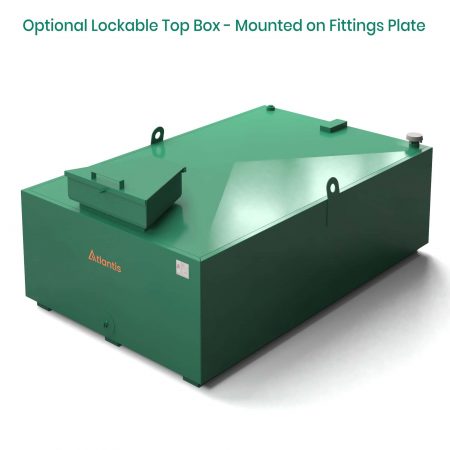

- Imperium® lockable top box option available
- Structural steel tank construction
- Low profile 600mm tank height
Please note: this product includes our FREE Ultra Compact Valve & Filter Upgrade as standard, replacing the standard filter valve setup. If you would prefer not to receive the upgrade, you can opt out on the product page and the tank will be supplied with the standard filter valve setup instead.
If you are considering the Magnus HAWKi Monitor, you can view the brochure here:

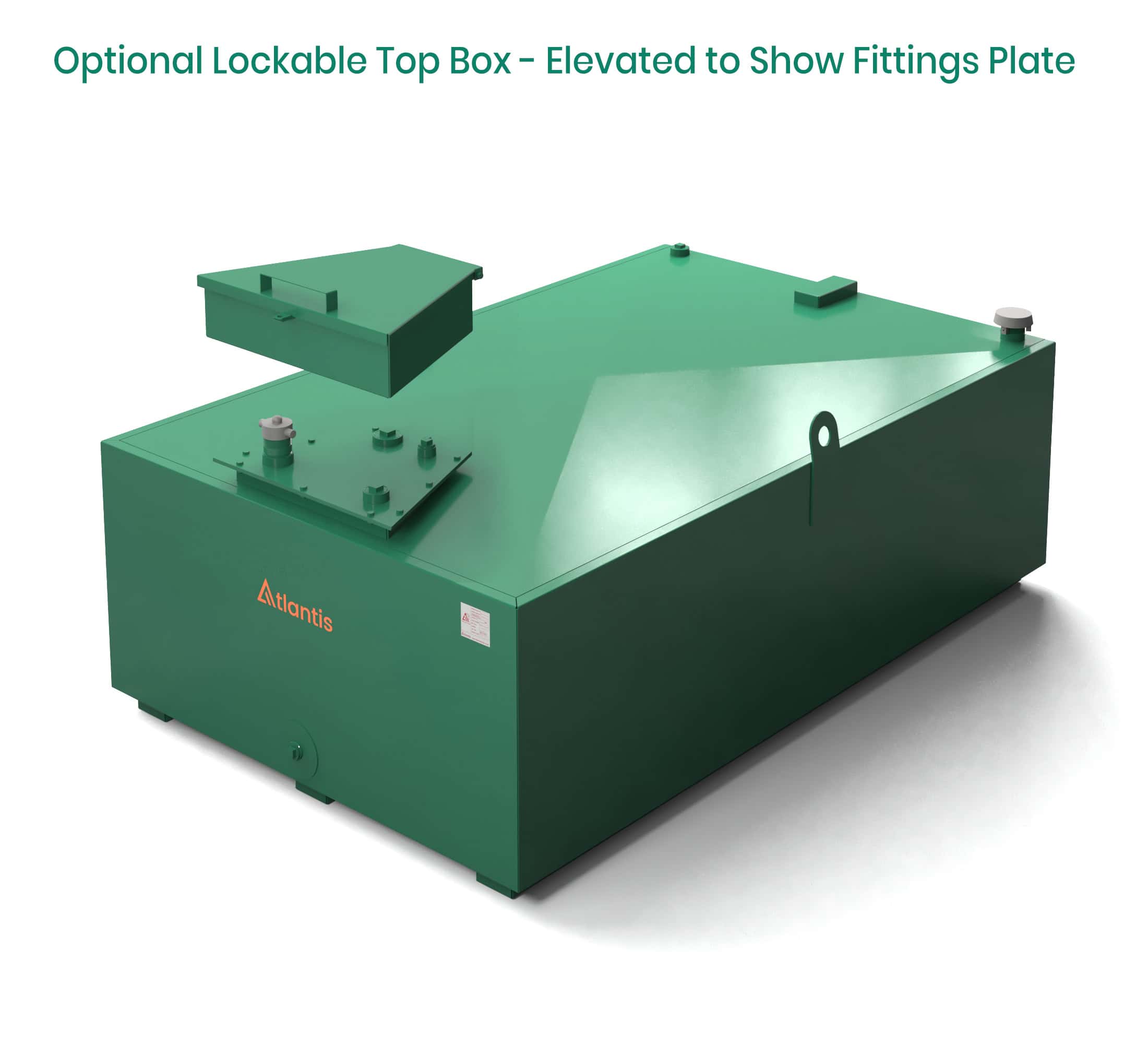

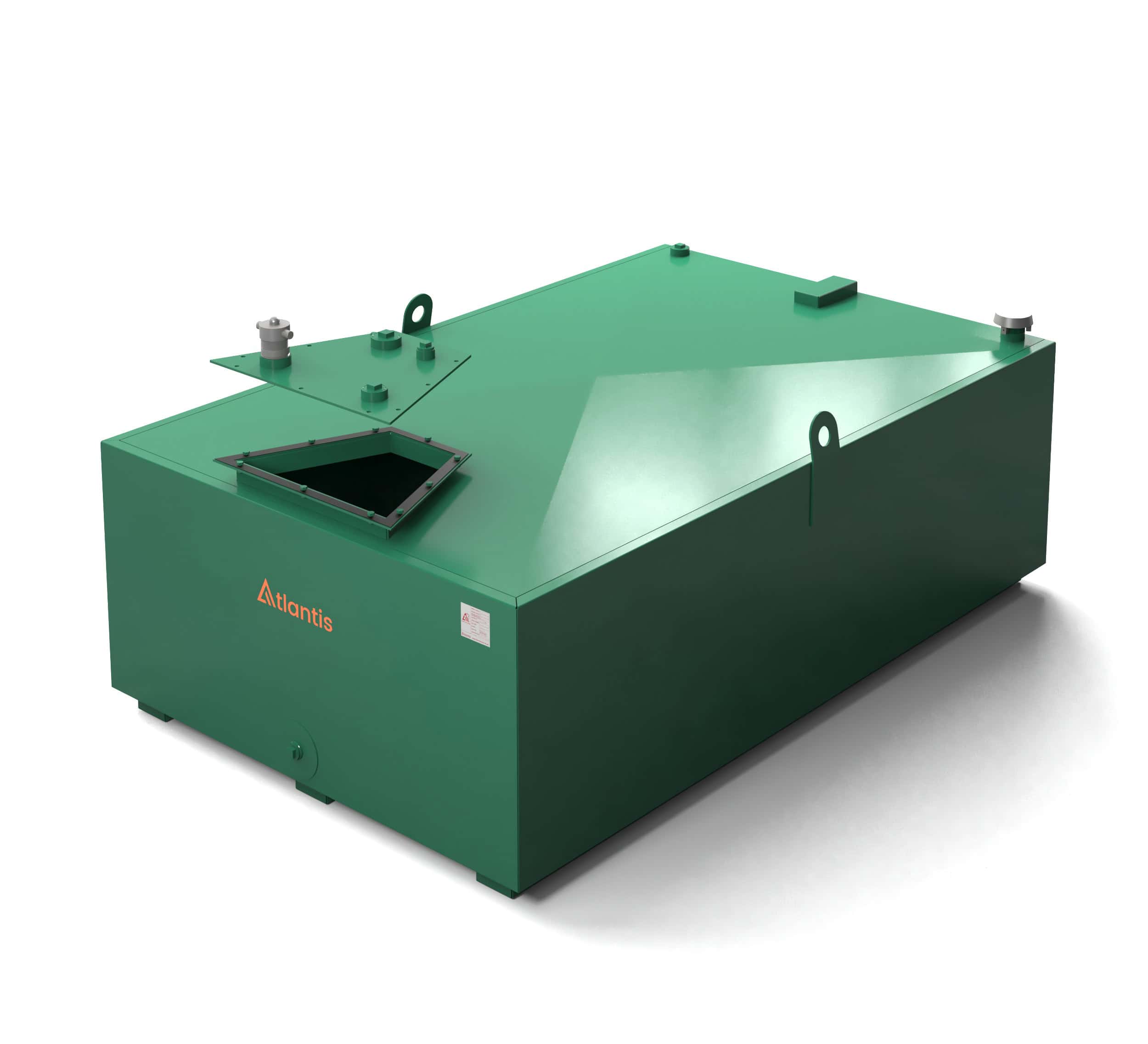

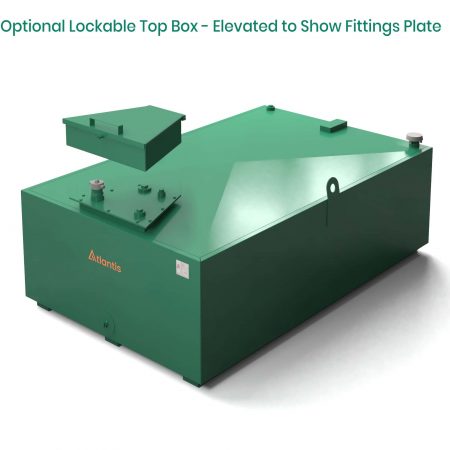

The Imperium® range is designed around a modular steel tank concept intended to improve build consistency, standardise fittings and reduce unnecessary complexity. Atlantis also highlights the removable and interchangeable top fittings plate as a key Imperium® feature, helping make the tank easier to inspect, service and adapt over time.
This tank has an approximate brimful capacity of 1315 litres, a nominal capacity of 1249 litres, and an approximate usable capacity of 1093 litres when fitted with an overfill prevention valve. The outer bund provides secondary containment, helping to protect the surrounding area if the inner tank is ever compromised.
The tank is manufactured in structural steel grade S275JR and is supplied with 3 full-length base bearers. The optional Imperium® lockable top box provides additional protection around the raised top fittings area, while the optional mechanical overfill prevention device offers an added safeguard during filling.
This Atlantis 1250 litre low profile steel bunded oil tank is a strong option where you want a lower-height steel tank with modern design features, practical upgrade options and the reassurance of a proven manufacturer.
Downloads
Atlantis EasyTank Product Manual (PDF)
Atlantis Steel Tank Installation Guide (PDF)
| Brand | Atlantis |
|---|---|
| Capacity | 1250 |
| Height | 600 |
| Length | 2000 |
| Width | 1250 |
| Weight | 264 |
| Product Range | Imperium® |
| Model / Product Code | TAN.HOI-1315 |
| Tank Type | Low Profile Steel Bunded Oil Tank |
| Material | Structural Steel Grade S275JR |
| Fill Point | 2" |
| Outlet | 1" Bottom Outlet |
| Base | 3 Full-Length Base Bearers |
| Suitable For | Heating Oil, Domestic Oil Storage, Commercial Oil Storage, Agricultural Oil Storage |
Tank delivery (important)
Tanks are delivered as a kerbside delivery. Off-loading and positioning/moving the tank on site is the responsibility of the customer/installer unless you select an off-load option (where available).
Delivery method for this tank
- Articulated lorry delivery: this tank is typically delivered on a large vehicle. Customer off-load is required (e.g. telehandler / forklift / suitable lifting equipment).
- HIAB off-load option (where selected): the tank can be off-loaded to the side of the vehicle. This is still a kerbside delivery and does not include moving the tank into position.
Access requirements
- Please ensure the route and delivery point are suitable for a large HGV/articulated vehicle.
- If you have restricted access (narrow lanes, tight turns, weight limits, low branches/overhangs), tell us before ordering so we can advise on options where possible.
- Drivers may refuse to proceed if access is unsafe or likely to damage the vehicle/property.
Before you order
- Check the tank dimensions and confirm it will fit through gates/side access.
- Prepare a suitable, level base before delivery.
- Plan your off-load method in advance if ordering with customer off-load.
Booking installers / fuel deliveries
Delivery dates are provided as guidance and can change due to haulage schedules. We recommend not booking installers or fuel deliveries until the tank has been delivered.
Need help?
If you are unsure about access or the best delivery option, contact us before ordering and we’ll help you choose.
